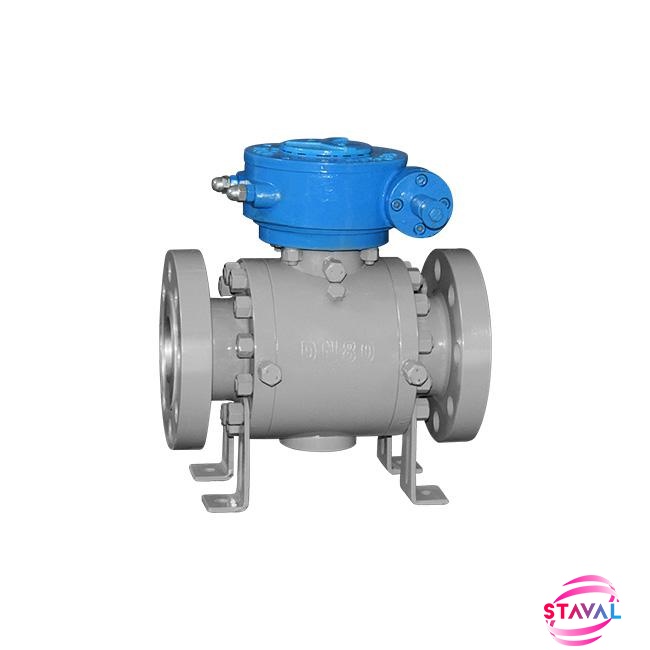

Ball Valve Trunnion Full Bore DN80 PN16 LF2

BS5351 3Pcs Full Bore Trunnion Ball Valve

DN80,PN16,LF2,LF2+ENP+WC+RPTFE, Gear Box

Manufacture STAVAL Factory Offers.

  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1000)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Construction:

    BB/Full Weld, Side/Top Entry, 1/2/3Pcs
  • Bore:

    Full Bore, Reduce Bore
  • End Connection:

    BW, Flange
  • Seat:

    Soft Seat, Metal Seat, PMSS Seat
  • Working Temp.:

    -196°C to +600°C
  • Product Details

Feature:

Fire Safe Design, Anti Static Design, Anti Blowout Stem, DBB Design, Drian And Vent, PMSS Design

Key Specification

Type

Ball Valve

Size

DN80

Pressure

PN16

Construction

3Pcs, Full Bore, Trunnion, Side Entry, Bolt Bonnet,

Connection

RF End

Body/Bonnet Material

ASTM A350 LF2

Ball Material

ASTM A350 LF2+ENP+WC

Stem Material

17-4PH

Seat Material

 ASTM A350 LF2+ENP+WC+RPTFE

Bolt/Nut

L7/7

Design Standard

API6D

Face to Face Dimension

ASMEB 16.10

End Connection

ASME B16.5

Fire Safe

API 6FA

Inspection & Test Std.

API598

Temperature Range

-29℃~+120

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
