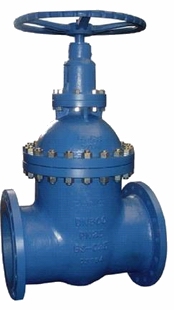

What is DIN Gate Valve

DIN Gate Valve is applicable to PN16-PN64, working temperature - 29 ~ 425 ℃ (carbon steel) and - 40 ~ 600 ℃ (stainless steel) of all kinds of pipeline, used to cut off or connect the medium in the pipeline. By selecting different materials, it can be applied to water, steam, oil, nitric acid, acetic acid, strong oxidizing medium, urea and other media. The operation model is manual, bevel gear and electric.

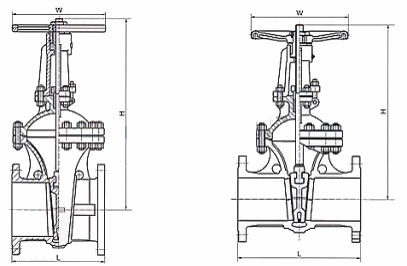

DIN Gate Valve structural features

1. DIN standard flange gate valve has compact structure, reasonable design, good rigidity, smooth passage and small flow resistance coefficient

2. The sealing surface is made of stainless steel and cemented carbide with long service life.

3. Using flexible graphite packing, reliable sealing, light and flexible operation.

4. Drive mode: electric, pneumatic, gear rotation, structural form: elastic wedge single gate, rigid wedge single gate double gate

5. Water seal gate valve is widely used in chemical, thermal power, power plants and other oil and steam pipelines to connect or cut off the medium in the pipeline.

DIN Gate Valve technical specifications

Structural : BB-BG-OS＆Y

Operation : Hand operated & Electric activated

Design standard: DIN3352

Structural length: DIN3202

Connecting flange: DIN2543-2547

Test and inspection: DIN3230
