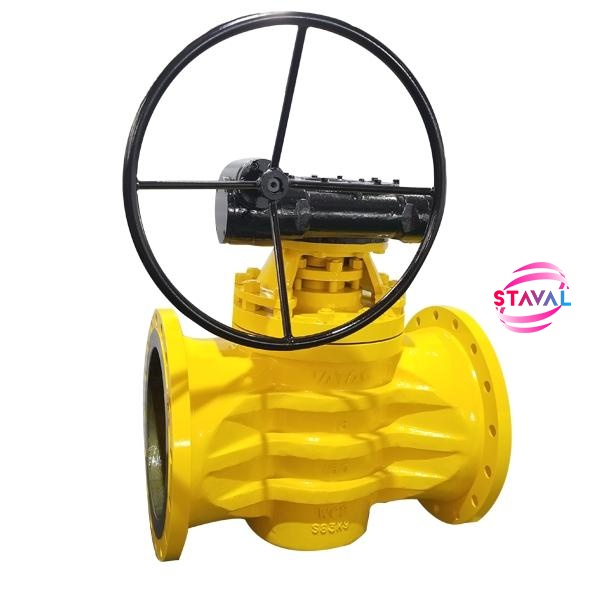

API6D Lubricated Plug Valve
18Inch,150LB, WCB, WCB+WC, Gear Box
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, BronzeConstruction:
Lubricated, Sleeve, Multi WayBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeSeat:
Soft Seat, Metal SeatWorking Temp.:
-196°C to +600°CProduct Details
|
Type |
Plug Valve |
|
Size |
18Inch |
|
Pressure |
150LB |
|
Construction |
Lubricated, Full Bore |
|
Connection |
RF End |
|
Body/Bonnet Material |
A216 WCB |
|
Plug Material |
A216WCB+WC |
|
Stem Material |
A182 F304 |
|
Seat Material |
A216WCB+WC |
|
Bolt/Nut |
B7/2H |
|
Design Standard |
API6D |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
ASMEB 16.5 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+80℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
XIAMEN STAVAL VALVE TECHNOLOGY CO., LTD
