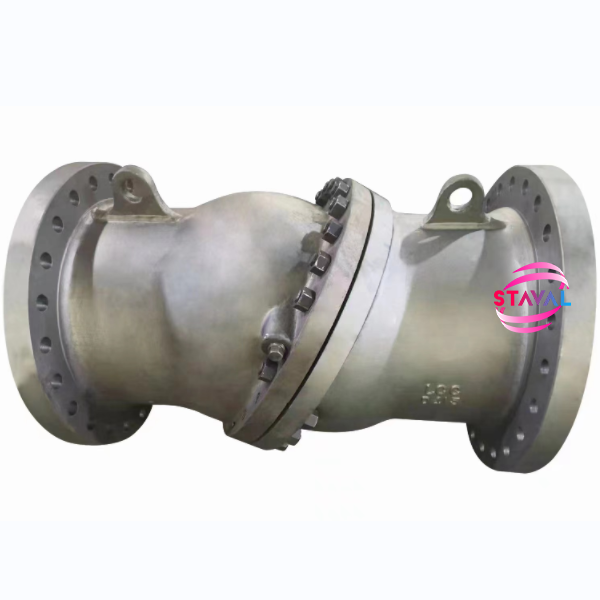

API 6D Titling Check Valve
28Inch, 300LB, LCC, WLCC+STL
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, BronzeConstruction:
BBBore:
Full BoreEnd Connection:
BW, FlangeSeat:
Metal SeatWorking Temp.:
-196°C to +600°CProduct Details
Key Specification
|
Type |
Titling Check Valve |
|
Size |
28Inch |
|
Pressure |
300LB |
|
Construction |
Titling Type |
|
Connection |
RF End |
|
Body Material |
A216 LCC+STL |
|
Disc Material |
A216 LCC+STL |
|
Bushing Material |
AL-BRONZE |
|
Pin Material |
410 |
|
Spring Material |
INCONEL-X 750 |
|
Design Standard |
API 6D |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
ASMEB 16.47 A |
|
Inspection & Test Std. |
API598 |
|
Medium |
Oil, Water, Gas |
Design Feature
a: Venturi-type channel reduces pressure drop
b: Spring protection, no collision
c: Low noise, little water hammer hazard
d: soft seal, secondary seal
e: Hard seal, fireproof design
f: Full range of lugs and feet available
g: The valve has no possibility of medium leakage
Design Sketch
