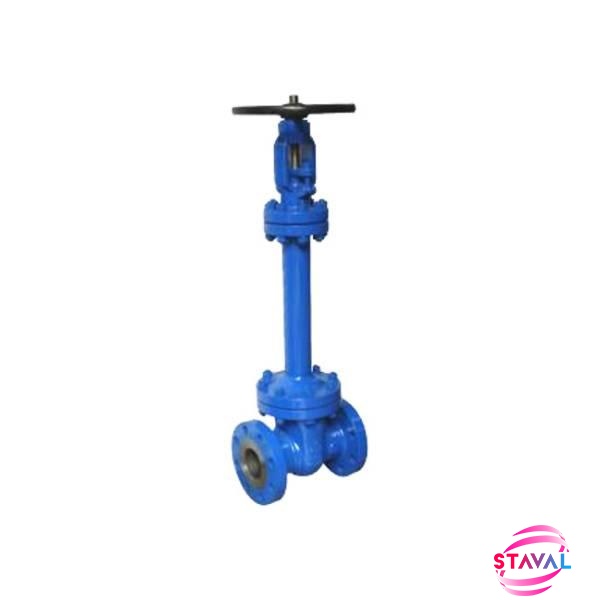

API600 Bellow Extended Gate Valve
4Inch,300LB,WCB,SS316+STL,Handwheel
Manufacture STAVAL Factory Offers
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon/Stainless/Alloy Steel,BronzeConstruction:
Rising Stem, Bolt/Weld Bonnet,Flexible/Solid WedgeBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeWorking Temp.:
-196°C to +600°CProduct Details
General Description:

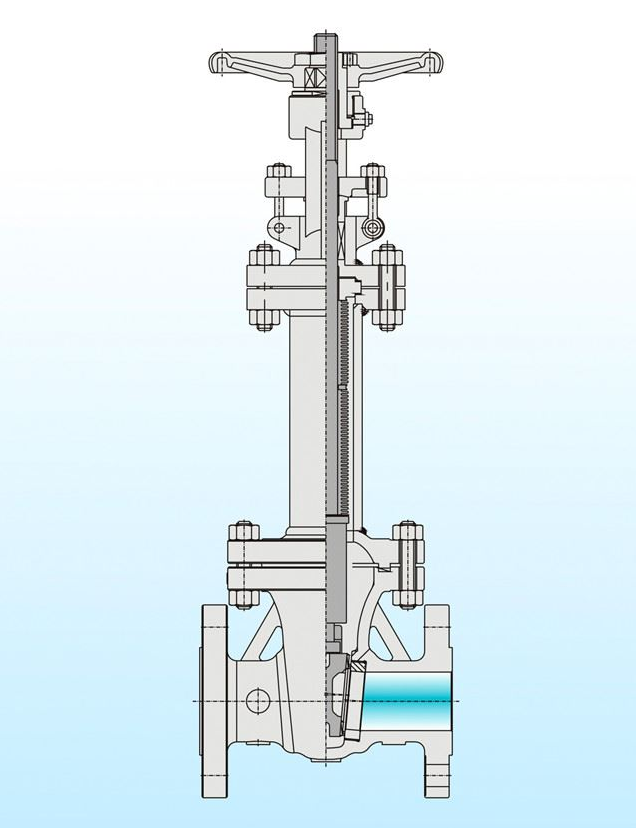

Leakage from the valve gland (stem packing) is often a problem for environmental protection & sometime it is quite dangerous if such leakage is from a hazardous fluid or gas. STAVAL bellow sealed valves are designed with a bellow cartridge which welded to the valve bonnet and stem, so that when the stem up & down movement makes the bellows expands & compress. Therefore there is no sliding or rotating seals through which process fluid can leak.
Design Feature:
Zero stem emission,Flexible wedge,Graphite stem packing secondary seal,Threaded or welded seat ring,5,000 cycles bellow without failure
Application:
Refinery,Petrochemical,Solar energy power plant,Hot oil, steam supply,General Chemical Industry
Key Specification
|
Type |
Bellow Gate Valve |
|
Size |
4Inch |
|
Pressure |
150LB |
|
Construction |
Bellow Seal, Extended Stem, Bolt Bonnet, Full Bore |
|
Connection |
RF End |
|
Body/Bonnet Material |
A216 WCB |
|
Wedge Material |
A351 CF3 |
| Bellow Material |
A182 F316 |
|
Stem Material |
A182 F316 |
|
Seat Material |
A351 CF3+STL |
|
Bolt/Nut |
B7/2H |
|
Design Standard |
API600 |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
ASMEB 16.5 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+425℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
