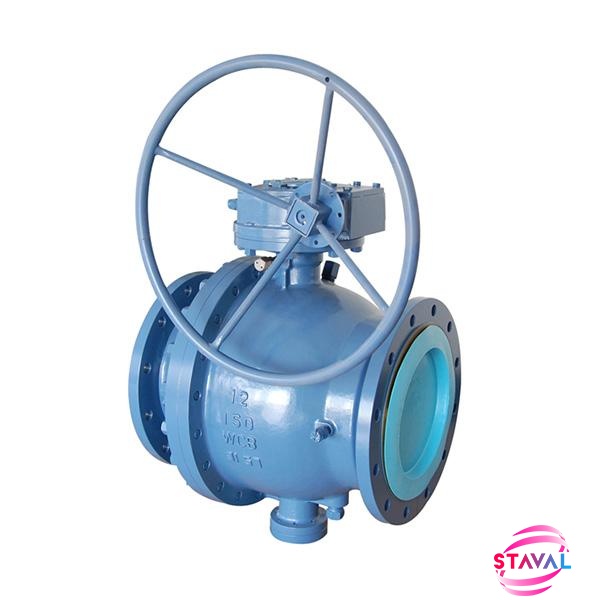

Ball Valve Trunnion Full Bore 12Inch 150LB WCB

API6D 2Pcs Full Bore Trunnion Ball Valve

12Inch,150LB,WCB,A105+WC+RPTFE,Gear Box

Manufacture STAVAL Factory Offers.

  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1000)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Construction:

    BB/Full Weld, Side/Top Entry, 1/2/3Pcs
  • Bore:

    Full Bore, Reduce Bore
  • End Connection:

    BW, Flange
  • Seat:

    Soft Seat, Metal Seat, PMSS Seat
  • Working Temp.:

    -196°C to +600°C
  • Product Details

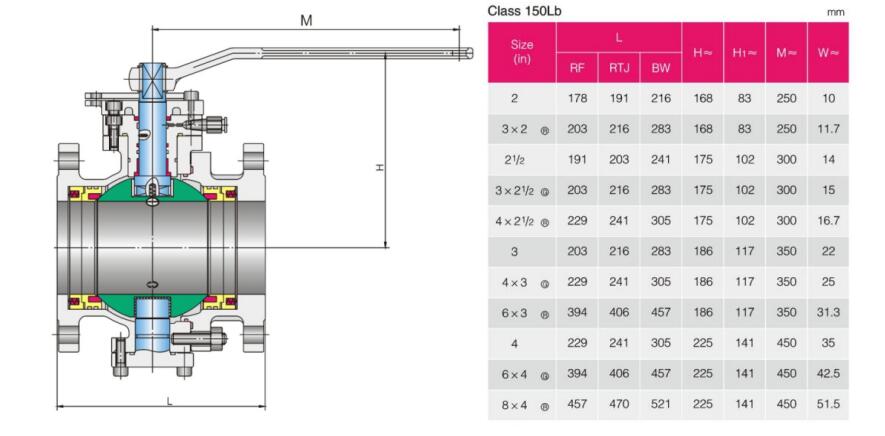

Casting Ball Valve Construction & Dimensions


Feature:

Fire Safe Design, Anti Static Design, Anti Blowout Stem,Drian And Vent

Key Specification

Type

Ball Valve

Size

12Inch

Pressure

150LB

Construction

2Pcs, Full Bore, Trunnion, Side Entry, Bolt Bonnet,

Connection

RF End

Body/Bonnet Material

A216 WCB

Ball Material

A105+WC

Stem Material

A182 F6

Seat Material

RPTFE

Bolt/Nut

B7/2H+HDG

Design Standard

API6D

Face to Face Dimension

ASME B16.10

End Connection

ASMEB 16.5

Fire Safe

API607

Inspection & Test Std.

API598

Temperature Range

-29℃~+120

Medium

Oil, Water, Gas


EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
