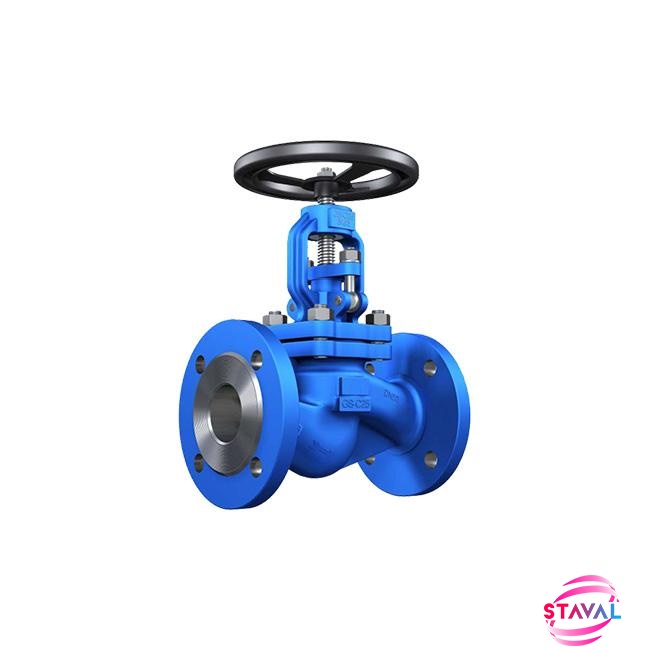

Bellow Globe Valve DN50 PN16 GS-C25

EN13709 Rising Stem Bellow Seal Globe Valve

DN50,PN16, GS-C25,WCB+13CR, Handwheel

Manufacture STAVAL Factory Offers.

  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1000)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Construction:

    Rising Stem, Bolt / Weld Bonnet, Bellow Seal
  • Bore:

    Full Bore, Reduce Bore
  • End Connection:

    BW, Flange
  • Working Temp.:

    -196°C to +600°C
  • Product Details

Key Specification

Type

Bellow Globe Valve

Size

DN50

Pressure

PN40

Construction

OS&Y, Rising Stem, Bolt Bonnet, Full Bore,Bellow Seal

Connection

BW End

Body/Bonnet Material

GS-C25

Disc Material

WCB+13CR

Bellow Material                                                         A182 F304

Stem Material

A182 F6A

Seat Material

13CR

Bolt/Nut

B7/2H

Design Standard

EN13709

Face to Face Dimension

EN558-1

End Connection

EN1092-1

Inspection & Test Std.

API598

Temperature Range

-60℃~+300

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
