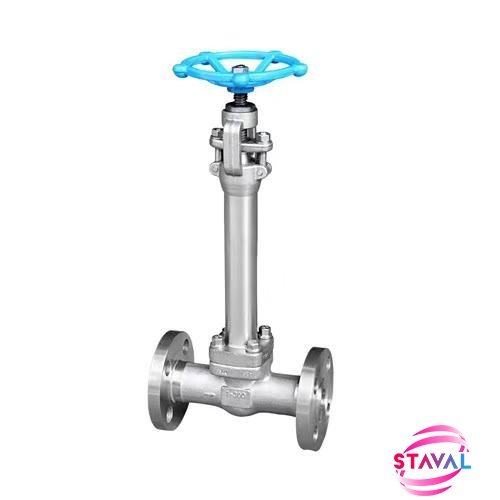

API602 Cryogenic Globe Valve
1Inch,300LB, F304, F304+STL, Handwheel
Manufacture STAVAL Factory Offers.
Size Range:
½Inch ~ 2Inch (DN10 ~ DN50)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel,Stainless Steel,Alloy Steel,BronzeConstruction:
Rising/Non Rising Stem, Bolt/Weld Bonnet, Plug/Conical DiscBore:
Full Bore, Reduce BoreEnd Connection:
BW, Flange, SW, NPT, PEWorking Temp.:
-196°C to +600°CProduct Details
|
Type |
Globe Valve |
|
Size |
1Inch |
|
Pressure |
300LB |
|
Construction |
Cryogenic, Extended Stem, Bolt Bonnet, Reduce Bore, Plug Disc |
|
Connection |
RF End |
|
Body/Bonnet Material |
A182 F304 |
|
Wedge Material |
A276 F304 |
|
Stem Material |
A276 F304 |
|
Seat Material |
STL |
|
Bolt/Nut |
B8 / 8 |
|
Design Standard |
API602 |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
ASMEB 16.5 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+425℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
XIAMEN STAVAL VALVE TECHNOLOGY CO., LTD
