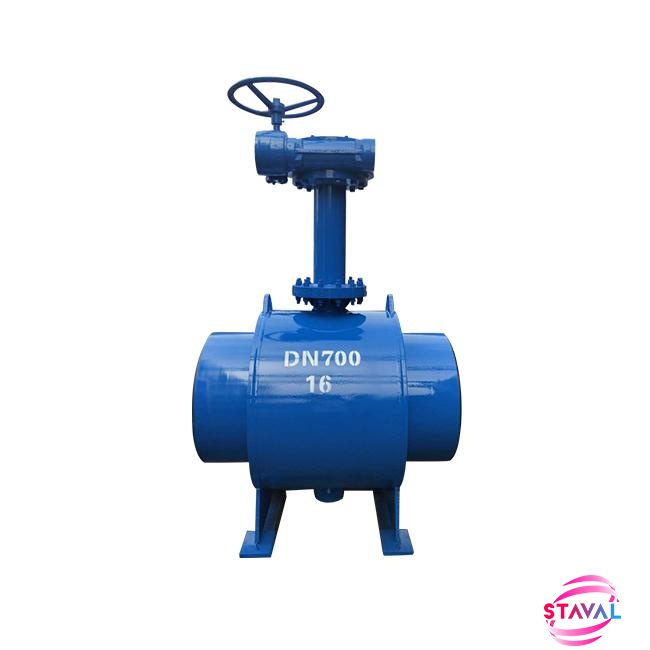

ISO17292 FB Trunnion Full Weld Pipeline Ball Valve
DN700,PN16,P245GH,F316L+RPTFE,Gear Box
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
A105, P245GH, Q235B, 20# Steel, QT450Construction:
Full Weld, Solid/Hollow/Sleeve BallBore:
Full Bore, Reduce BoreSeat:
Soft Seat, Metal Seat, PMSS SeatWorking Temp.:
-196°C to +600°CProduct Details
Feature
Fire Safe Design, Anti Static Design, Anti Blowout Stem
Key Specification
|
Type |
Ball Valve |
|
Size |
DN700 |
|
Pressure |
PN16 |
|
Construction |
3Pcs, Full Bore, Trunnion, Side Entry, Full Welded, Extended Stem |
|
Connection |
BW End |
|
Body/Bonnet Material |
QT450 (P245GH, Q235, 20#) |
|
Ball Material |
F316L(Solid Ball) |
|
Stem Material |
F316L |
|
Seat Material |
RPTFE |
|
Bolt/Nut |
B7/2H |
|
Design Standard |
ISO 17292 |
|
Face to Face Dimension |
EN558 |
|
End Connection |
ASME B16.25 |
|
Fire Safe |
API607 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+129℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
