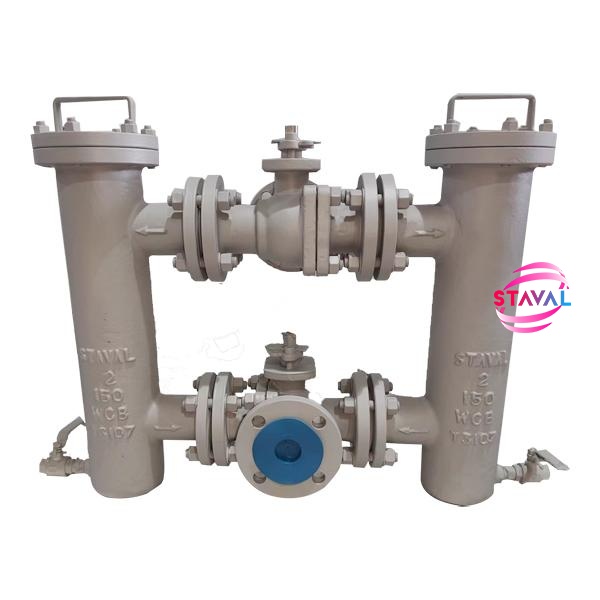

ASME B16.34 Duplex Basket Strainer
2Inch, 150LB, WCB, SS316,RF End
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, Bronze, Cast IronEnd Connection:
BW, FlangeWorking Temp.:
-196°C to +600°CProduct Details
Duplex Basket Strainer Structure
Key Specification
|
Type |
Duplex Basket Strainer |
|
Size |
2Inch |
|
Pressure |
150LB |
|
Construction |
Three Way Ball Valve Connection, Bolt Cover, With Drain&Vent , |
|
Connection |
RF End |
|
Body Material |
A216 WCB |
|
Cover Material |
A105 |
|
Screen Material |
SS316 |
|
Bolt/Nut |
B7/2H |
|
Design Standard |
ASME B16.34 |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
ASME B16.5 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+425℃ |
|
Medium |
Oil, Water, Gas |
XIAMEN STAVAL VALVE TECHNOLOGY CO., LTD
