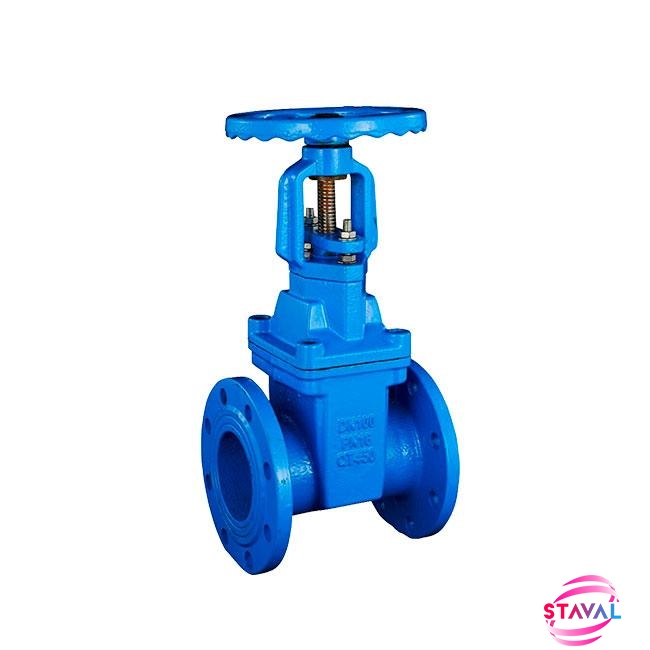

Gate Valve DN100 PN16 GGG50( QT450)

DIN3352 Rising Stem Resilent Gate Valve,

DN100,PN16,GGG50,GGG50+EPDM, Handwheel

Manufacture STAVAL Factory Offer.

  • Product origin:

    China
  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1200)
  • Pressure Range:

    150LB ~ 300LB (PN10 ~ PN25)
  • Material Range:

    Cast Iron, Ductile Iron, A216 GS C25
  • Construction:

    Rising Stem, Non Rising Stem, Resilent Wedge
  • Bore:

    Full Bore, Reduce Bore
  • End Connection:

    Flange
  • Seat:

    Soft Seat, Metal Seat
  • Product Details

Key Specification


Type

Gate Valve

Size

DN100

Pressure

PN16

Construction

Rising Stem, Bolt Bonnet, Full Bore, Reslient Wedge

Connection

RF End

Body/Bonnet Material

GGG50 (QT450)

Wedge Material

GGG50+EPDM

Stem Material

2Cr13

Seat Material

EPDM

Bolt/Nut

Carbon Steel

Design Standard

DIN3352

Face to Face Dimension

DIN3202-F4

End Connection

DIN2532 /DIN2533/ EN1092-1

Inspection & Test Std.

API598

Temperature Range

-29℃~+425

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
