Home Butterfly Valve

Concentric Butterfly Valve

 Concentric Butterfly Valve 4Inch 150LB

API 609 Butterfly Valve
API 609 Butterfly Valve

Concentric Butterfly Valve 4Inch 150LB

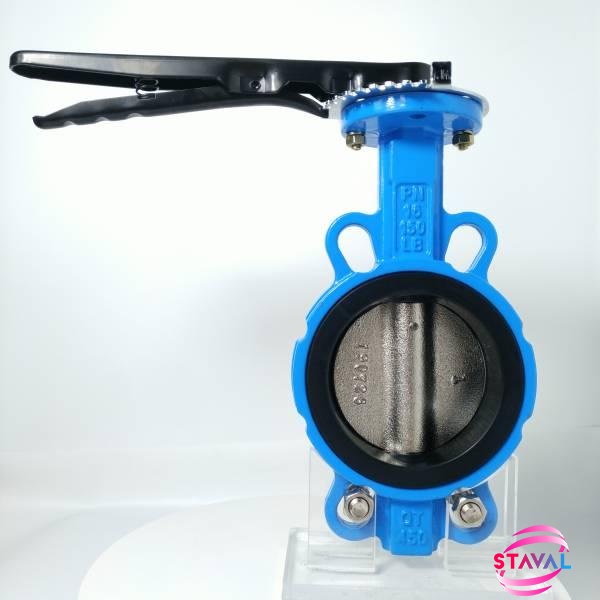

API 609 Concentric Butterfly Valve

4Inch 150LB,DI, DI+EPDM,LEVER

Manufacture STAVAL Factory Offers.

  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1000)

  • Pressure Range:

    150LB,PN10,PN16,10K

  • Material Range:

    DI, CI, CS, SS

  • Construction:

    Concentric, Wafer

  • Bore:

    Full Bore

  • End Connection:

    Wafer, Flange, Lug

  • Seat:

    Soft Seat
Inquire now

  • Product Details

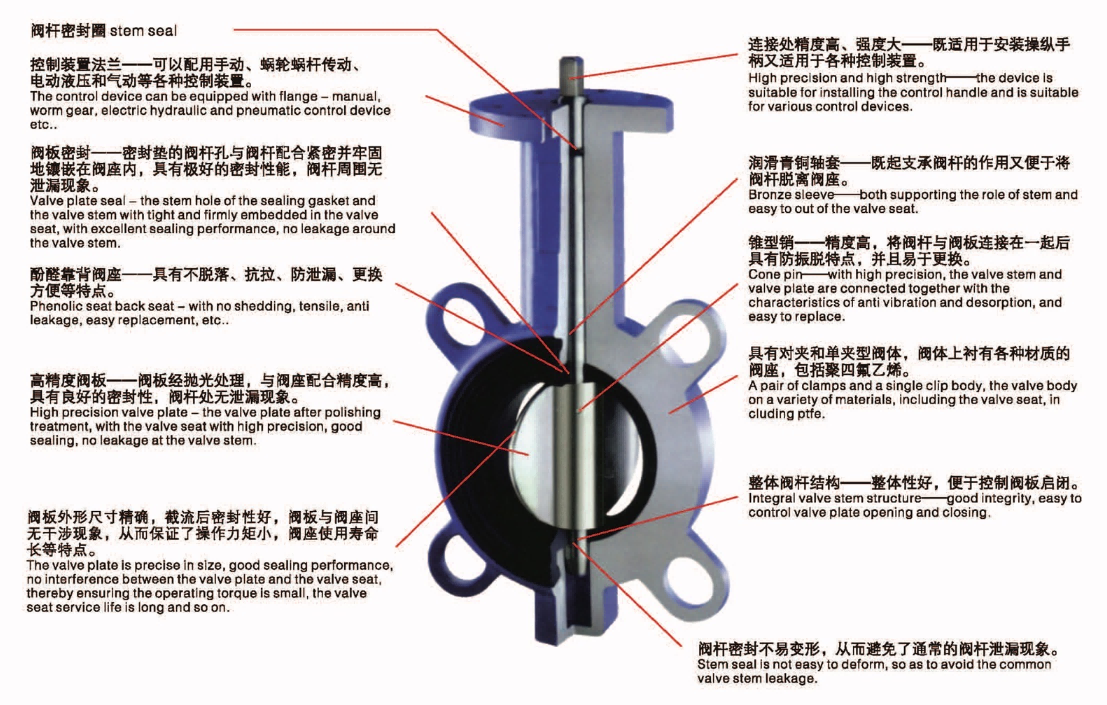

API 609 Concentric Butterfly Valve Construciton


Key Specification

Type

 Butterfly Valve

Size

4Inch

Pressure

150LB

Construction

Concentric type, Wafer Type

Connection

Wafer End

Body/Bonnet Material

DI

Disc Material

DI

Stem Material

SS416

Seat Material

EPDM

Bolt/Nut

CS

Design Standard

API609

Face to Face Dimension

ASME B16.10

End Connection

ASMEB 16.5

Inspection & Test Std.

API598

Temperature Range

-29℃~+425℃

Medium

Oil, Water, Gas

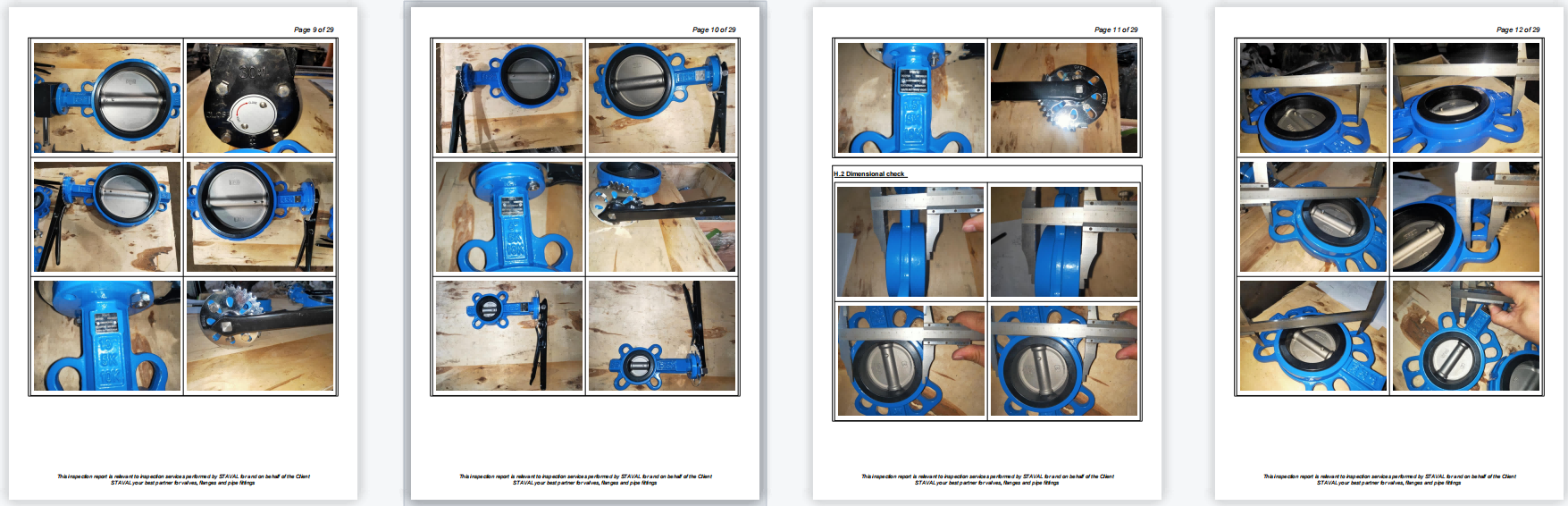

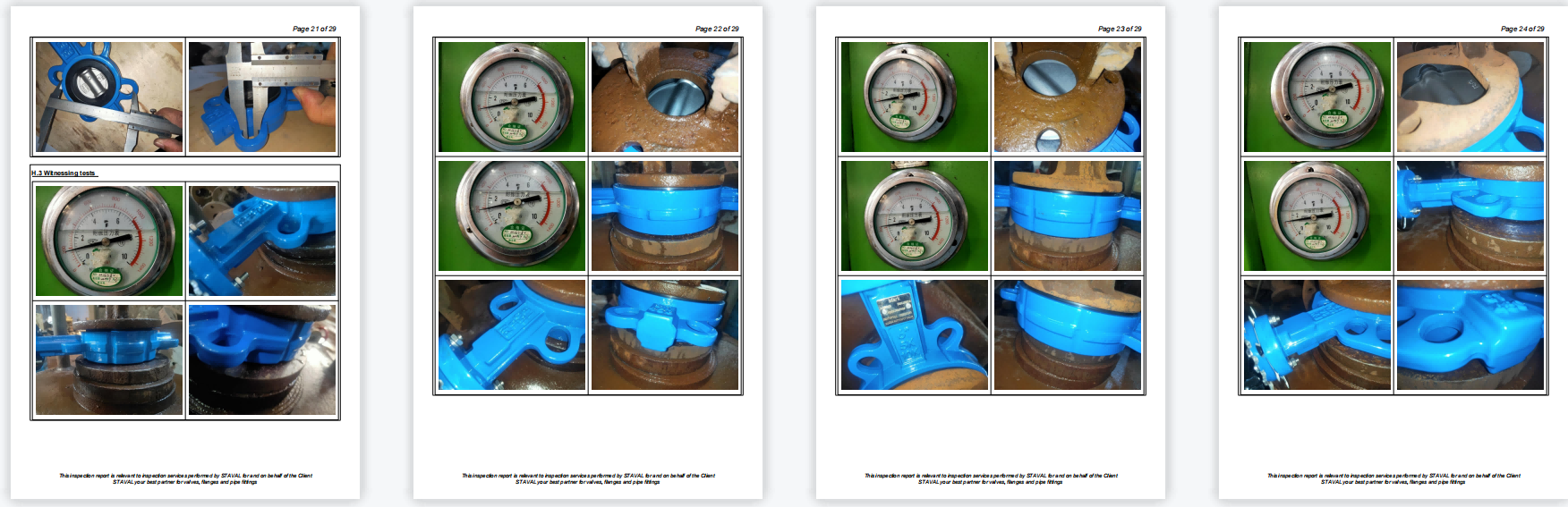

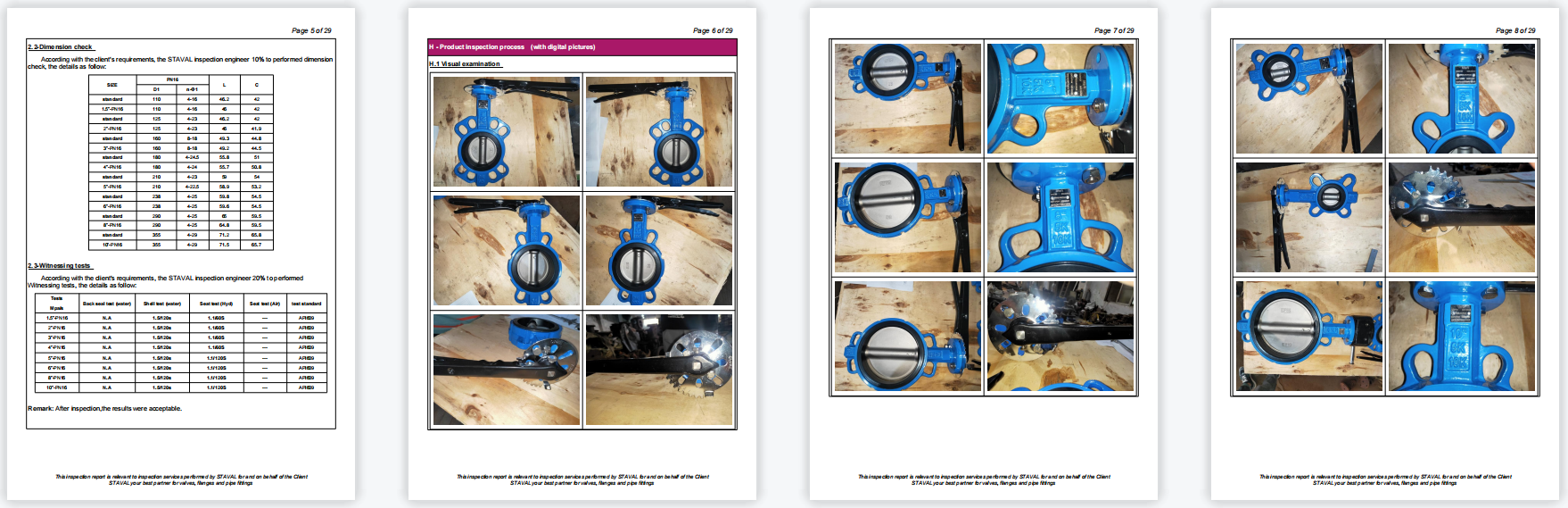

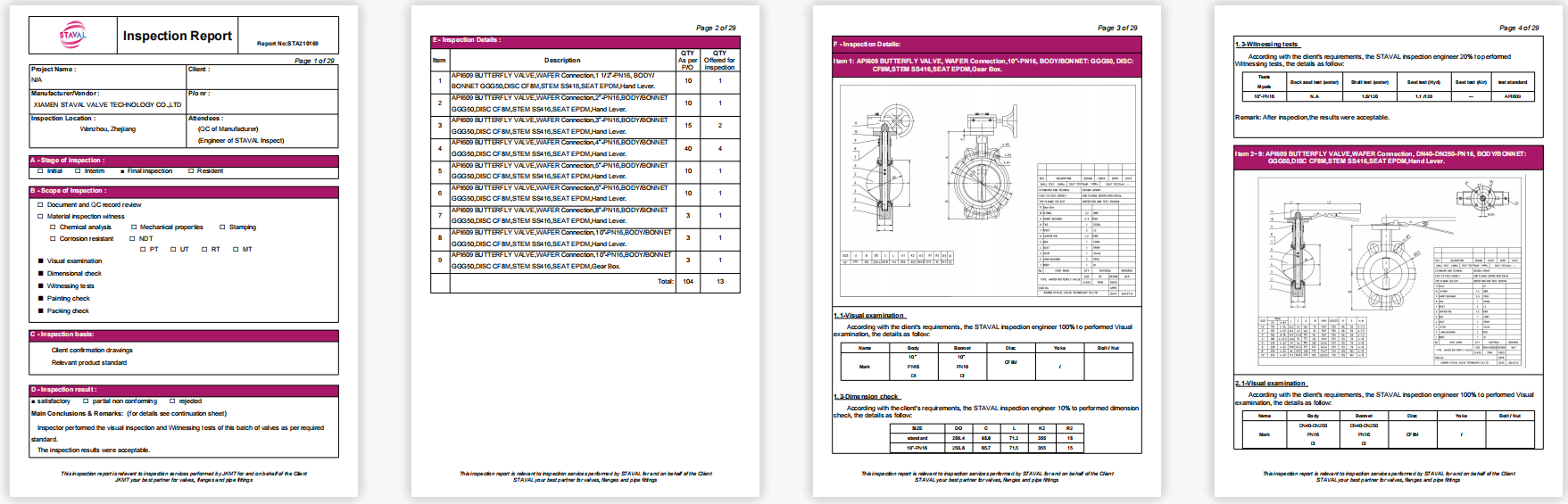

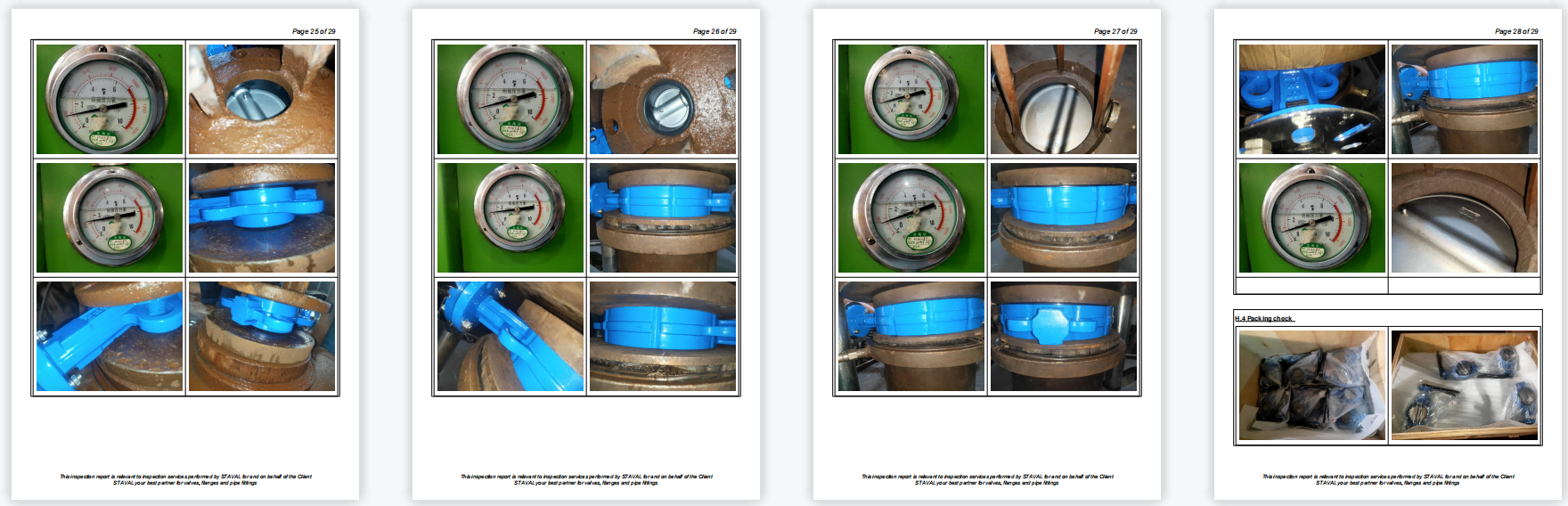

                      Inspection Report Issued By STAVAL
