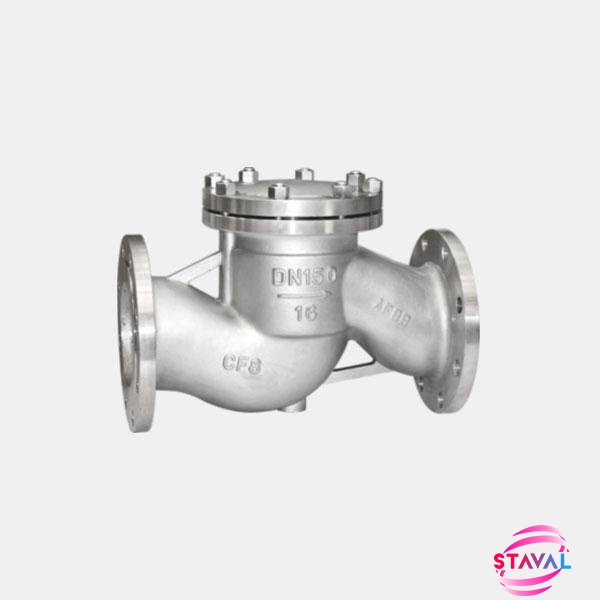

DIN3356 Lift Check Valve
DN150, PN16, CF8, F304+STL
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel,Stainless Steel,Alloy Steel,Bronze,Cast IronConstruction:
Bolt / Weld Bonnet,Full Open,Internal/External HingeBore:
Full BoreEnd Connection:
BW, FlangeWorking Temp.:
-196°C to +600°CProduct Details
Key Specification
|
Type |
Lift Check Valve |
|
Size |
DN150 |
|
Pressure |
PN16 |
|
Construction |
Bolt Bonnet, Full Bore |
|
Connection |
RF End |
|
Body Material |
A351 CF8+STL |
|
Disc Material |
A182 F304 |
|
Spring |
SS304 |
|
Cover Material |
A182 F304 |
|
Bolt/Nut |
B8/8 |
|
Design Standard |
DIN 3356 |
|
Face to Face Dimension |
DIN3202-F2 |
|
End Connection |
DIN 2534 |
|
Inspection & Test Std. |
EN12266-1/2 |
|
Temperature Range |
-29℃~+450℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
