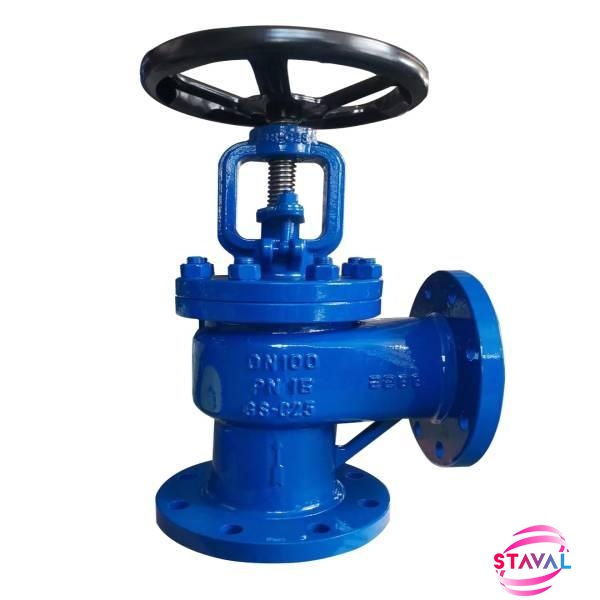

Angle Globe Valve DN100 PN16 GS-C25

DIN3356 Right Angle Globe Valve

DN100,PN16, GS-C25, A105+STL, Handwheel

Manufacture STAVAL Factory Offers.

  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1000)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Construction:

    Rising/Non Rising Stem, Bolt/Weld Bonnet, Plug/Conical Disc
  • Bore:

    Full Bore, Reduce Bore
  • End Connection:

    BW, Flange
  • Working Temp.:

    -196°C to +600°C
  • Product Details

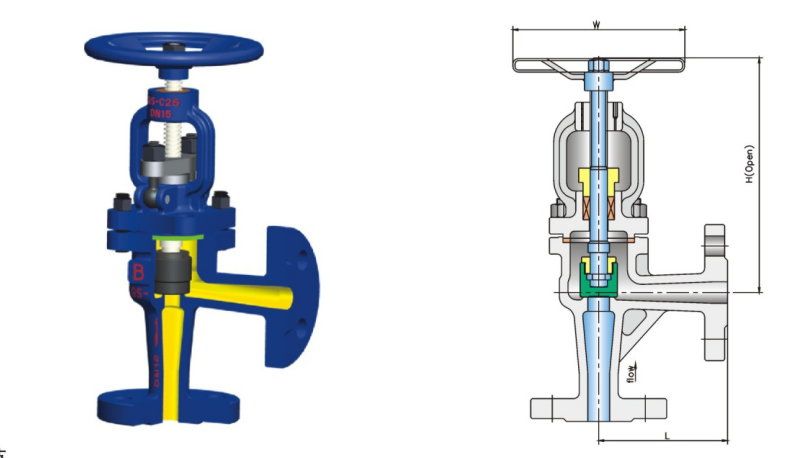

Angle Globe Valve Construction

gs c25 material globe valve

Key Specification

Type

Right Angle Globe Valve

Size

DN100

Pressure

PN16

Construction

OS&Y, Rising Stem, Bolt Bonnet, Full Bore,Plug Disc

Connection

RF End

Body/Bonnet Material

GS C25 (1.0619)

Disc Material

ASTM A105+STL

Stem Material

A182 F6A

Seat Material

STL

Bolt/Nut

B7/2H

Design Standard

DIN3356

Face to Face Dimension

EN558

End Connection

EN1092-1

Inspection & Test Std.

EN1226-1/2

Temperature Range

-29℃~+425

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
