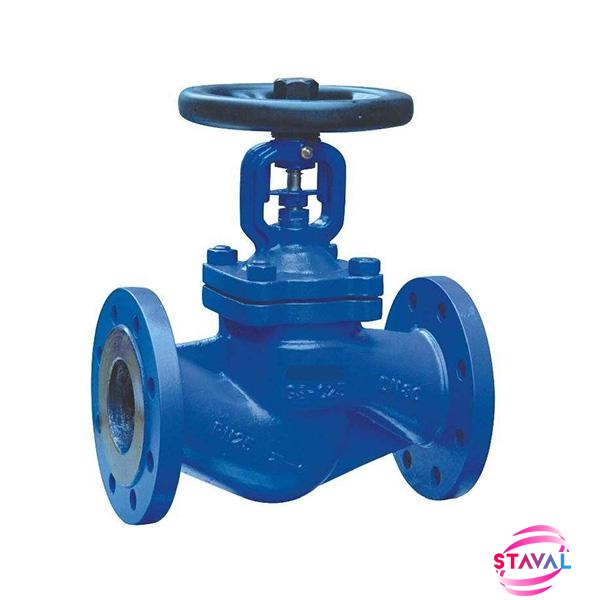

Globe Valve DN80 PN25 GS-C25

DIN3356 Rising Stem Globe Valve

DN80,PN25,GS-C25, A105+13Cr, Handwheel

Manufacture STAVAL Factory Offers.

  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1000)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon Steel,Stainless Steel,Alloy Steel,Bronze
  • Construction:

    Rising/Non Rising Stem, Bolt/Weld Bonnet, Plug/Conical Disc
  • Bore:

    Full Bore, Reduce Bore
  • End Connection:

    BW, Flange
  • Working Temp.:

    -196°C to +600°C
  • Product Details

General Description:

STAVAL can provide a choice of different face to face dimensions for DIN/EN cast steel globe valve. It has good sealing performance and longer service life, which is suitable for industry, power system, exhaust gas purification device, hot water, heat transfer oil application, shipbuilding industry, etc.

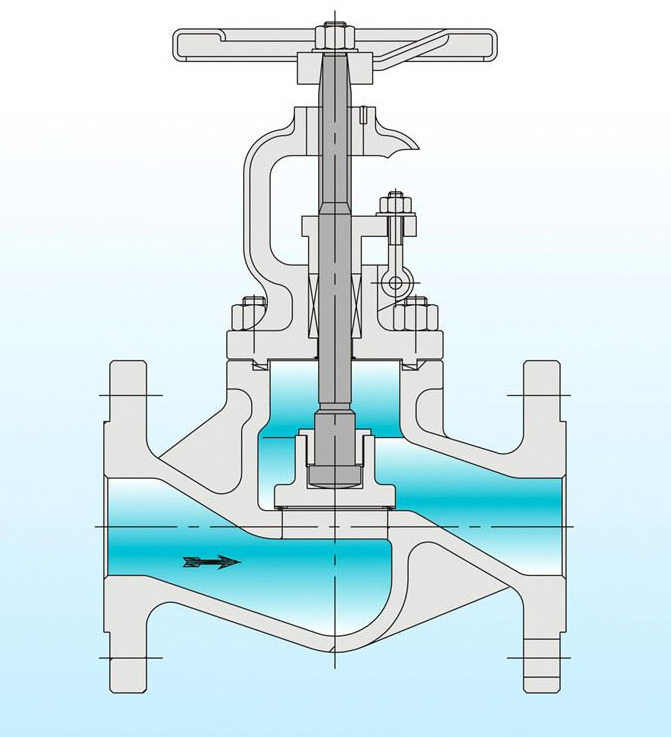

Design Feature:

Low emission control,Integral body seat,Plug or throttling disc,Optional Impact hand wheel


Key Specification

Type

Globe Valve

Size

DN80

Pressure

PN25

Construction

OS&Y, Rising Stem, Bolt Bonnet, Full Bore,Plug Disc

Connection

RF End

Body/Bonnet Material

GS C25

Wedge Material

ASTM A105+13Cr

Stem Material

A182 F6A

Seat Material

STL

Bolt/Nut

B8/8

Design Standard

DIN3356

Face to Face Dimension

DIN 3202-F1

End Connection

DIN2543

Inspection & Test Std.

EN1226-1/2

Temperature Range

-29℃~+425

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
