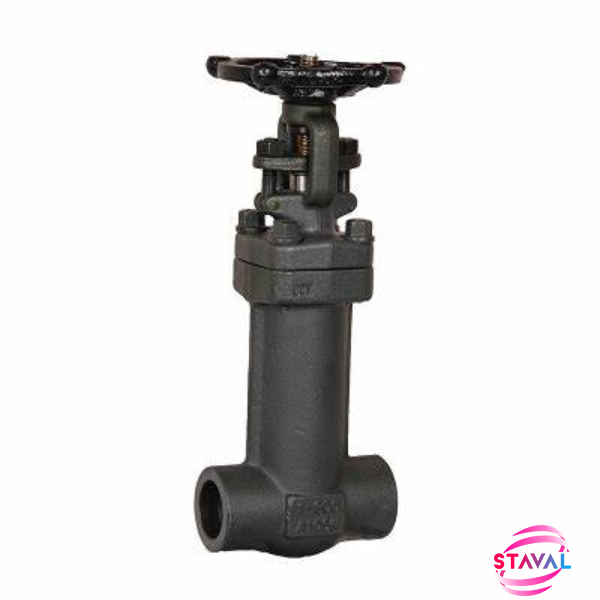

API602 Bellow Gate Valve 1½Inch,800LB, A105N

API602 Bellow Gate Valve

1½Inch,800LB,A105N, 410Trim,Handwheel

Manufacture STAVAL Factory Offers.

  • Size Range:

    ½Inch ~ 2Inch (DN10 ~ DN50)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Construction:

    Rising/Non Rising Stem, Bolt / Weld Bonnet, Solid Wedge
  • Bore:

    Full Bore, Reduce Bore
  • End Connection:

    BW, Flange, SW, NPT, PE
  • Working Temp.:

    -196°C to +600°C
  • Product Details

General Description:

Leakage from the valve gland (stem packing) is often a problem for environmental protection & sometime it is quite dangerous if such leakage is from a hazardous fluid or gas. STAVAL bellow sealed valves are designed with a bellow cartridge which welded to the valve bonnet and stem, so that when the stem up & down movement makes the bellows expands & compress. Therefore there is no sliding or rotating seals through which process fluid can leak.

Design Feature:

The product is a solid wedge with an expansion seat ring and a graphite stem packing for secondary sealing, which can ensure zero stem discharge and trouble-free cycles of less than 5,000 times

Application:

Can be used in general industries, including oil refineries, petrochemical and solar power plants, to ensure the supply of hot oil and steam.


Key Specification
Type

Bellow Gate Valve

Size

1½Inch

Pressure

800LB

Construction

OS&Y, Rising Stem, Bolt Bonnet, Solid Wedge

Connection

SW End

Body/Bonnet Material

A105N

Wedge Material

A276 420

Stem Material

A276 410

Seat Material

A276 420

Bolt/Nut

B7/2H

Design Standard

API602

Face to Face Dimension

Manufacture's Std

End Connection

ASMEB 16.11

Inspection & Test Std.

API598

Temperature Range

-29℃~+425

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
