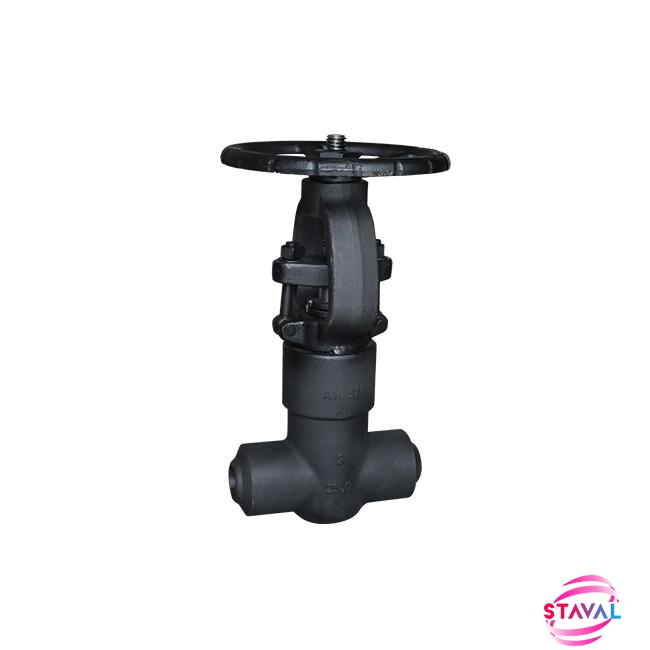

Pressure Seal Gate Valve 2Inch 2500LB A105N

API602 Pressure Seal Gate Valve

2Inch,2500LB,A105N,420Trim,Handwheel

Manufacture STAVAL Factory Offers.

  • Product origin:

    China
  • Size Range:

    ½Inch ~ 2Inch (DN10 ~ DN50)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Construction:

    Rising/Non Rising Stem, Bolt/Weld Bonnet, Solid Wedge
  • Bore:

    Full Bore, Reduce Bore
  • End Connection:

    BW, Flange, SW, NPT, PE
  • Working Temp.:

    -196°C to +600°C
  • Product Details

Key Specification

Type

Gate Valve

Size

2Inch

Pressure

2500LB

Construction

Pressure Seal, Rising Stem, Reduce Bore, Solid Wedge

Connection

BW End

Body/Bonnet Material

A105N

Wedge Material

A276 420

Stem Material

A276 410

Seat Material

A276 420

Bolt/Nut

B7/2H

Design Standard

API602

Face to Face Dimension

Manufacture's Std

End Connection

ASMEB 16.25

Inspection & Test Std.

API598

Temperature Range

-29℃~+425

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
