Ball Valve Floating Full Bore 2Inch 300LB CF8

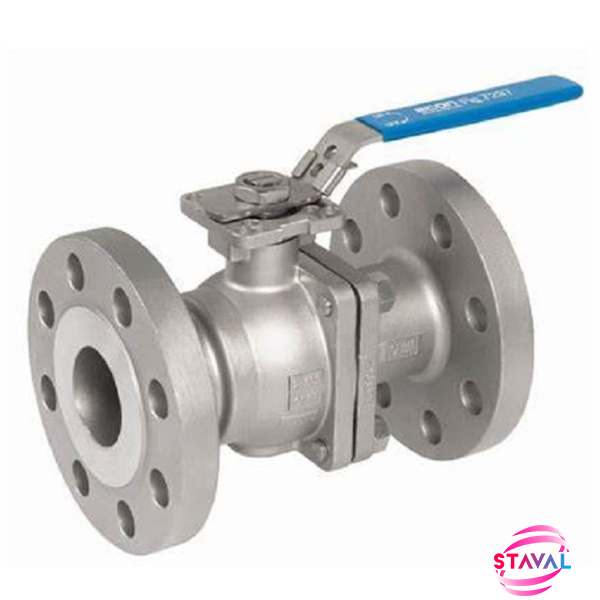

API6D 2Pcs Full Bore Floating Ball Valve

2Inch,300LB,CF8,F304+rPTFE,Lever

Manufacture STAVAL Factory Offers.


  • Size Range:

    1Inch ~ 60Inch (DN25 ~ DN1000)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Construction:

    BB/Full Weld, Side/Top Entry, 1/2/3Pcs
  • Bore:

    Full Bore, Reduce Bore
  • End Connection:

    BW, Flange
  • Seat:

    Soft Seat, Metal Seat, PMSS Seat
  • Working Temp.:

    -196°C to +600°C
  • Product Details

General Description:

Cast steel floating ball valves are normally 2-PC split body and side entry. STAVAL offers 3 main type: Conventional design covers working temperature -46℃~200℃; Cryogenic design covers working temperature -196℃ ~ -46℃ and High performance design covers working temperature 200℃ ~ 500℃. All can be fire safe test design.

Design Feature:

Full port or Reduce port, Fire safe design, Blowout-proof stem, Anti-static, TA-Luft Low emission control, ISO 5211 top flange (long neck type is optional), Optional locking device

Application:

Refinery, Chemical, Petrochemical,Power plant,Pharmaceutical

Key Specification

Type

Ball Valve

Size

2Inch

Pressure

300LB

Construction

2Pcs, Full Bore, Floating, Side Entry, Bolt Bonnet,

Connection

RTJ End

Body/Bonnet Material

A351 CF8

Ball Material

A182 F304

Stem Material

17-4PH

Seat Material

RPTFE

Bolt/Nut

B8/8

Design Standard

API6D

Face to Face Dimension

ASME B16.10

End Connection

ASMEB 16.5

Fire Safe

API607

Inspection & Test Std.

API598

Temperature Range

-40℃~+300

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
