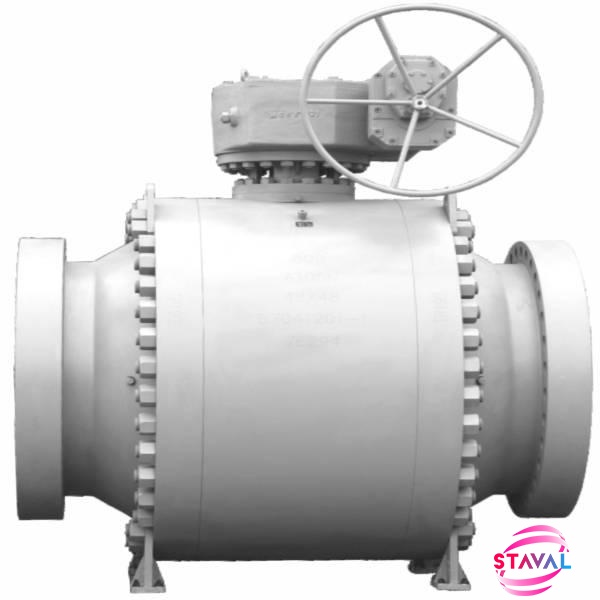

API6D Full Bore Trunnion Mounted Ball Valve
48Inch, 600LB, WCB, F316+PEEK, Gear Box
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, BronzeConstruction:
BB/Full Weld, Side/Top Entry, 1/2/ 3PcsBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeSeat:
Soft Seat, Metal Seat, PMSS SeatWorking Temp.:
-196°C to +600°CProduct Details
Feature:
Fire Safe Design, Anti Static Design, Anti Blowout Stem, Double Block Double Bleed, Double Position, Drain And Vent
Key Specification
Type |
Ball Valve |
Size |
48Inch |
Pressure |
600LB |
Construction |
3pcs, Full Bore, Trunnion, Bolt Bonnet, DBB, Doule Position Design |
Connection |
RTJ End |
Body/Bonnet Material |
A105 |
Ball Material |
A182 F316 |
Stem Material |
XM-19 |
Seat Material |
A182 F316+PEEK |
Bolt/Nut |
B7/2H Zn |
Design Standard |
API6D |
Face to Face Dimension |
ASME B16.10 |
End Connection |
ASMEB 16.5 |
Fire Safe Design |
API607 |
Inspection & Test Std. |
API598 |
Temperature Range |
-29℃~+538℃ |
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
