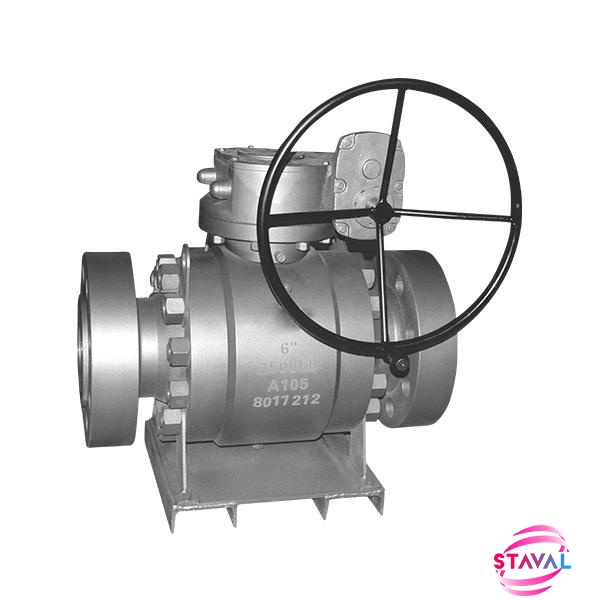

Ball Valve Trunnion FB 6Inch 2500LB A105

API6D 3Pcs Full Bore Trunnion Ball Valve

6Inch,2500LB,A105,F316L+DEVLON,Gear Box

Manufacture STAVAL Factory Offers

  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1000)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Construction:

    BB/Full Weld, Side/Top Entry, 1/2/3Pcs
  • Bore:

    Full Bore, Reduce Bore
  • End Connection:

    BW, Flange
  • Seat:

    Soft Seat, Metal Seat, PMSS Seat
  • Working Temp.:

    -196°C to +600°C
  • Product Details

Feature:

Fire Safe Design, Anti Static Design, Anti Blowout Stem,DBB, Drian And Vent

Key Specification

Type

Ball Valve

Size

6Inch

Pressure

2500LB

Construction

3Pcs, Full Bore, Trunnion, Side Entry, Bolt Bonnet,

Connection

RTJ End

Body/Bonnet Material

ASTM A105

Ball Material

A182 F316L

Stem Material

17-4PH

Seat Material

A182 F316L+DEVLON

Bolt/Nut

B7/2H+Zn

Design Standard

API6D

Face to Face Dimension

ASMEB 16.10

End Connection

ASME B16.5

Fire Safe

API607

Inspection & Test Std.

API598

Temperature Range

-29℃~+120

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
