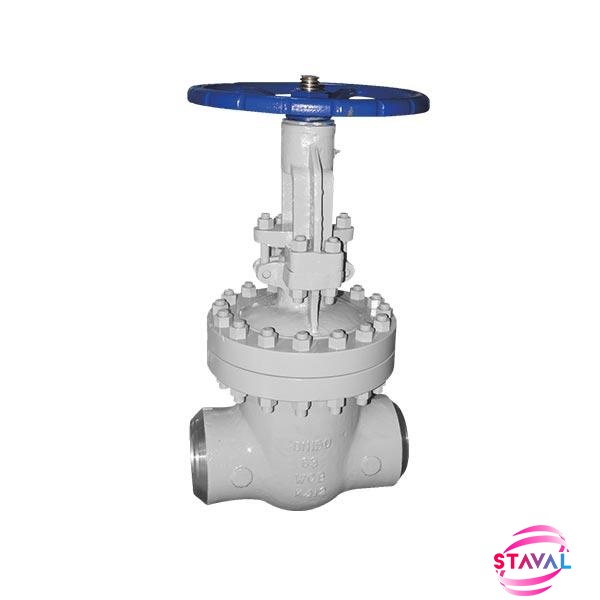

Gate Valve DN150 PN63 WCB

EN1984 Rising Stem Gate Valve

DN150,PN63,WCB,WCB+13Cr, Gear Box

Manufacture STAVAL Factory Offers.

  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1000)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon/Stainless/Alloy Steel,Bronze, Cast Iron
  • Construction:

    Rising/Non Rising, Bolt/Weld Bonnet, Flexible/Solid Wedge
  • Bore:

    Full Bore, Reduce Bore
  • End Connection:

    BW, Flange
  • Working Temp.:

    -196°C to +600°C
  • Product Details

Key Specification

Type

Gate Valve

Size

DN150

Pressure

PN63

Construction

OS&Y, Rising Stem, Bolt Bonnet, Full Bore, Flexible Wedge

Connection

BW End

Body/Bonnet Material

A216 WCB

Wedge Material

A216 WCB+13Cr

Stem Material

A182 F6A

Seat Material

A105+13Cr

Bolt/Nut

B7/2H

Design Standard

EN1984

Face to Face Dimension

DIN3202

End Connection

EN1092-1

Inspection & Test Std.

EN12266-1

Temperature Range

-29℃~+425

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
