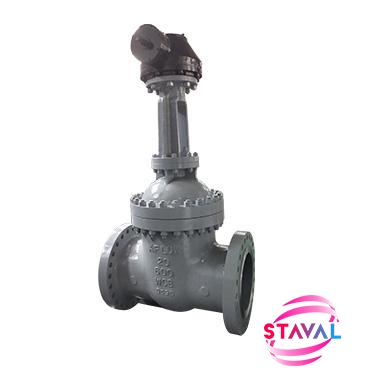

API600 Rising Stem Gate Valve
20Inch,600LB,WCB, WCB+13Cr, Gear Box
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon/Stainless/Alloy Steel,Bronze, Cast IronConstruction:
Rising/Non Rising,Bolt/Weld Bonnet,Flexible/Solid WedgeBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeWorking Temp.:
-196°C to +600°CProduct Details
General Description:
The stem of the rising stem gate valve is outside the valve body, which can intuitively judge the position of opening and closing the gate/wedge, which is also conducive to maintenance and lubrication.
Design Feature:
Flexible wedge, Renewable threaded or welded seat ring,Optional Impact hand wheel,Rising stem Bolted Bonnet or Pressure Seal Bonnet
Application:
Refinery, Petrochemical,Geothermal plant, Power plant, General Industry
Key Specification
Type |
Gate Valve |
Size |
20Inch |
Pressure |
600LB |
Construction |
OS&Y, Rising Stem, Bolt Bonnet, Full Bore, Flexible Wedge |
Connection |
RTJ End |
Body/Bonnet Material |
A216 WCB |
Wedge Material |
A216 WCB+13Cr |
Stem Material |
A182 F6A |
Seat Material |
A105+13Cr |
Bolt/Nut |
B7/2H |
Design Standard |
API600 |
Face to Face Dimension |
ASME B16.10 |
End Connection |
ASMEB 16.5 |
Inspection & Test Std. |
API598 |
Temperature Range |
-29℃~+425℃ |
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
