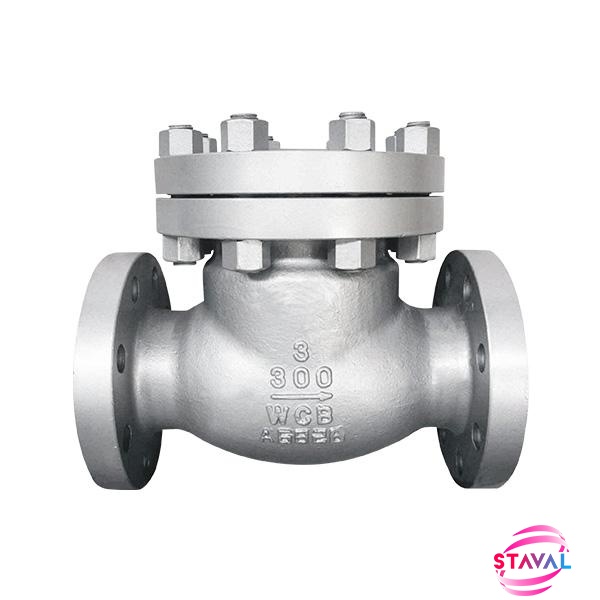

BS1868 Swing Check Valve
3Inch,300LB, WCB, CF8+STL
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel,Stainless Steel,Alloy Steel,Bronze,Cast IronConstruction:
Bolt/Weld Bonnet,Full Open,Internal / External HingeBore:
Full BoreEnd Connection:
BW, FlangeWorking Temp.:
-196°C to +600°CProduct Details
Key Specification
|
Type |
Swing Check Valve |
|
Size |
3Inch |
|
Pressure |
300LB |
|
Construction |
Bolt Bonnet, Full Bore, Full Open, Internal Hinge |
|
Connection |
RTJ End |
|
Body/Bonnet Material |
A216 WCB+STL |
|
Disc Material |
ASTM A351 CF8 |
|
Hinge Material |
A216 WCB |
|
Hinge Pin Material |
A182 F304 |
|
Bolt/Nut |
B8/8 |
|
Design Standard |
BS1868 |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
ASMEB 16.5 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+450℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
XIAMEN STAVAL VALVE TECHNOLOGY CO., LTD
