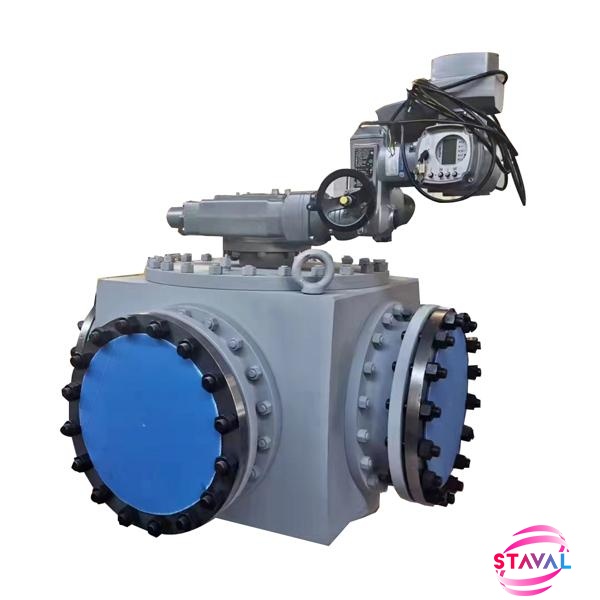

API6D Three Way Ball Valve
10Inch,150LB,A105,F316+DEVLON,ELECTRIC ACTUATOR
Manufacture STAVAL Factory Offers.
Size Range:
2Inch ~ 24Inch (DN50 ~ DN600)Pressure Range:
150LB ~ 1500LB (PN16 ~ PN250)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, BronzeConstruction:
Bolt BonnetBore:
L pore ,T poreEnd Connection:
Flange, WeldSeat:
Soft, MetalProduct Details
Related Knowledge
What is the difference between T port and L port 3-way ball valve?
Normally speaking, 3-way ball valve can be divided into T type and L type.
A T port three-way ball valve can connect any two ports, and even connect all three ports together at the same time. However, an L port three-way ball valve can only connect the center port with either side port or disconnect three ports.
Key Specification
|
Type |
Three Way Ball Valve |
|
Size |
10Inch |
|
Pressure |
150LB |
|
Construction |
Four Way, Trunnion Mounted, Bolt Bonnet, |
|
Connection |
RF End |
|
Body/Bonnet Material |
A105N |
|
Ball Material |
SS316+DEVLON |
|
Stem Material |
XM-19 |
|
Seat Material |
A182 F304+DEVLON |
|
Bolt/Nut |
B7/2H Zn |
|
Design Standard |
API6D |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
ASMEB 16.5 |
|
Fire Safe Design |
API607 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+538℃ |
|
Medium |
Oil, Water, Gas |
