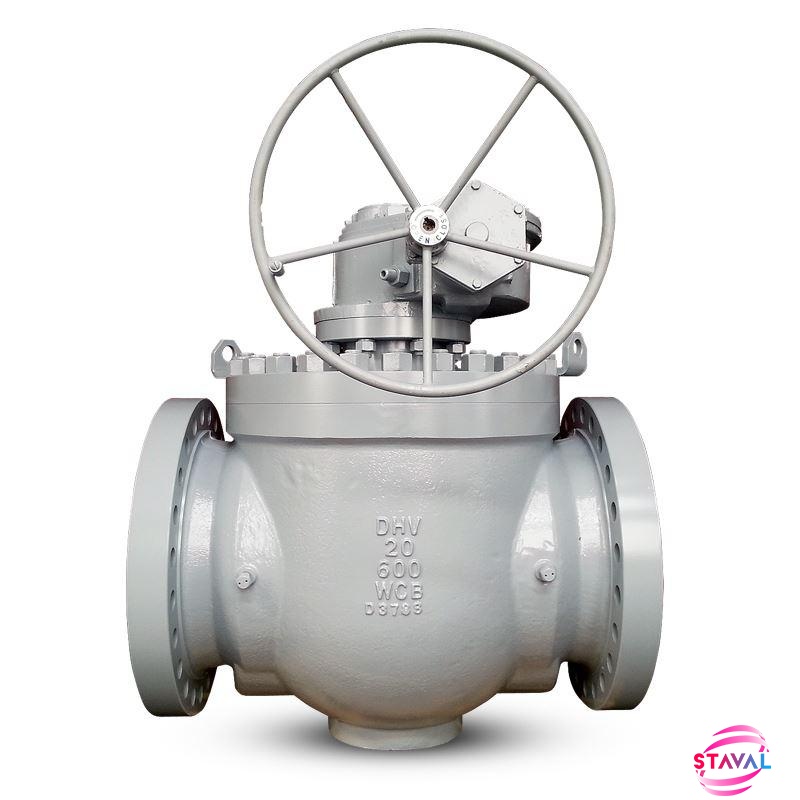

Top Entry Ball Valve 20Inch 600LB WCB

API6D Top Entry Full Bore Trunnion Ball Valve

20Inch,600LB,WCB,F304+DEVLON,Gear Box

Manufacture STAVAL Factory Offers.

  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1000)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Construction:

    BB/Full Weld
  • Bore:

    Full Bore, Reduce Bore
  • End Connection:

    BW, Flange
  • Seat:

    Soft Seat, Metal Seat, PMSS Seat
  • Working Temp.:

    -196°C to +600°C
  • Product Details

General Description:

STAVAL top entry ball valve is featuring with uni-body, top entry and trunnion mounted ball. This type of valve gives convenient of in-line repair or replace internal components without dismantling it from the pipeline.

Design Feature:

The product has a fire-proof design, has double blocking and bleeding, has the characteristics of emergency sealant injection and cavity pressure self-release, and has anti-boom and anti-static functions.

Application:

On shore Oil & Gas, Off shore Oil & Gas, Refinery, Chemical, Petrochemical, Power plant


Key Specification

Type

Ball Valve

Size

20Inch

Pressure

600LB

Construction

Top Entry, Full Bore, Trunnion, Bolt Bonnet,

Connection

RTJ End

Body/Bonnet Material

A216WCB

Ball Material

A182 F304

Stem Material

XM-19

Seat Material

A182 F304+DEVLON

Bolt/Nut

B7/2H Zn

Design Standard

API6D

Face to Face Dimension

ASME B16.10

End Connection

ASMEB 16.5

Fire Safe Design

API607

Inspection & Test Std.

API598

Temperature Range

-29℃~+538

Medium

Oil, Water, Gas
