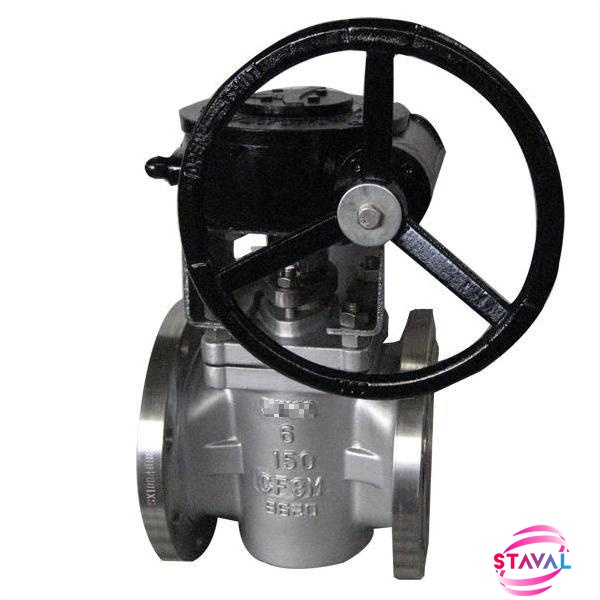

API6D Sleeved Plug Valve
6Inch,150LB,CF8M,CF8M+PTFE, Gear Box
Manufacture STAVAL Factory Offers.
Product origin:
ChinaSize Range:
2Inch ~ 60Inch (DN50 ~ DN1000)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
Carbon Steel, Stainless Steel, Alloy Steel, Bronze, Specialize MaterialConstruction:
Lubricated, Sleeved, Multi WayBore:
Full Bore, Reduce BoreEnd Connection:
BW, FlangeSeat:
Soft Seat, Metal SeatWorking Temp.:
-196°C to +600°CProduct Details
|
Type |
Plug Valve |
|
Size |
6Inch |
|
Pressure |
150LB |
|
Construction |
Non Lubricated, Sleeved, Full Bore |
|
Connection |
RF End |
|
Body/Bonnet Material |
A351 CF8M |
|
Plug Material |
A351 CF8M |
|
Stem Material |
A182 F316 |
|
Seat Material |
PTFE |
|
Bolt/Nut |
B8M/8M |
|
Design Standard |
API6D |
|
Face to Face Dimension |
ASME B16.10 |
|
End Connection |
DIN2543-2545 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+150℃ |
|
Medium |
Oil, Water, Gas |
EN10204 3.1 Certificate Issued By STAVAL
Inspection Report Issued By STAVAL
