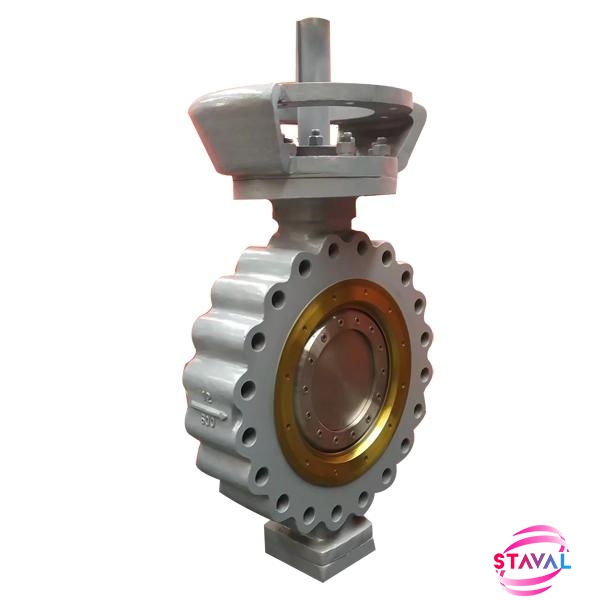

Triple Eccentric Lug Type Butterfly Valve 12Inch 600LB WCC

API609 Triple Eccentric Butterfly Valve, Manufacture STAVAL Factory Offers.
  • Product origin:

    China
  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1600)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon Steel, Stainless Steel, Alloy Steel, Bronze, Specialize Material
  • Construction:

    Triple Eccentric, Concentric, Eccentric ,High Performance
  • Bore:

    Full Bore
  • End Connection:

    BW, Flange, Lug, Wafer
  • Seat:

    Soft Seat, Metal Seat
  • Working Temp.:

    -196°C to +600°C
  • Product Details

triple eccentric butterfly valve lug Key Specification
Type

Butterfly Valve

Size

16Inch

Pressure

600LB

Construction

Triple Eccentric, Two way seal, Zero Leakage

Connection

Lug End

Body Material

A216 WCB

Disc Material

A216 WCB+STL

Stem Material

A182 F6A

Seat Material

A216 WCB+STL

Bolt/Nut

B7/2H

Design Standard

API 609

Face to Face Dimension

ASME B16.5

End Connection

ASME B16.10

Inspection & Test Std.

API598

Temperature Range

-29℃~+459

Medium

Oil, Water, Gas
