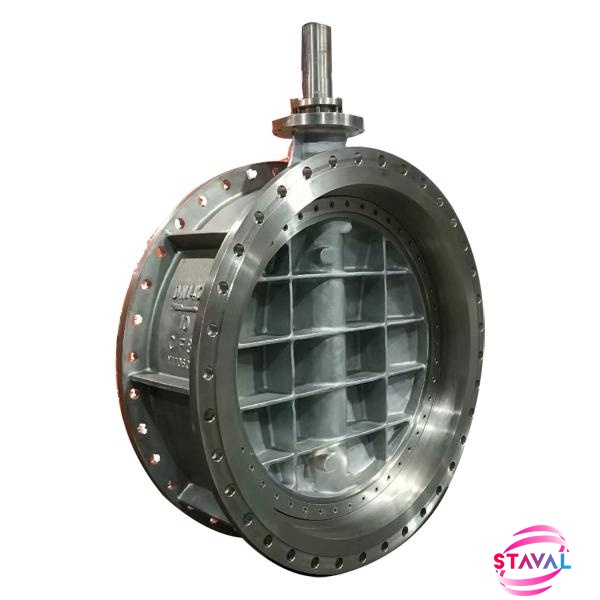

Triple Eccentric Multi Layer Butterfly Valve DN1400 PN10 CF8

EN558 Triple Eccentric Multi Layer Metal Butterfly Valve, Manufacture STAVAL Factory Offers.
  • Product origin:

    China
  • Size Range:

    2Inch ~ 60Inch (DN50 ~ DN1600)
  • Pressure Range:

    150LB ~ 2500LB (PN16 ~ PN420)
  • Material Range:

    Carbon Steel, Stainless Steel, Alloy Steel, Bronze, Specialize Material
  • Construction:

    Triple Eccentric, Concentric, Eccentric ,High Performance
  • Bore:

    Full Bore
  • End Connection:

    BW, Flange, Lug, Wafer
  • Seat:

    Soft Seat, Metal Seat
  • Working Temp.:

    -196°C to +600°C
  • Product Details

Key Specification
Type

Butterfly Valve

Size

DN1400

Pressure

PN10

Construction

Triple Eccentric, Mutil Layer Metal Seat, Two way seal, Zero Leakage

Connection

RF End

Body Material

A351 CF8

Disc Material

A351 CF8+STL

Stem Material

A182 F304

Seat Material

A351 CF8+STL

Bolt/Nut

B7/2H

Design Standard

EN593

Face to Face Dimension

EN558

End Connection

EN1092-1

Inspection & Test Std.

EN1226-1

Temperature Range

-29℃~+459

Medium

Oil, Water, Gas
