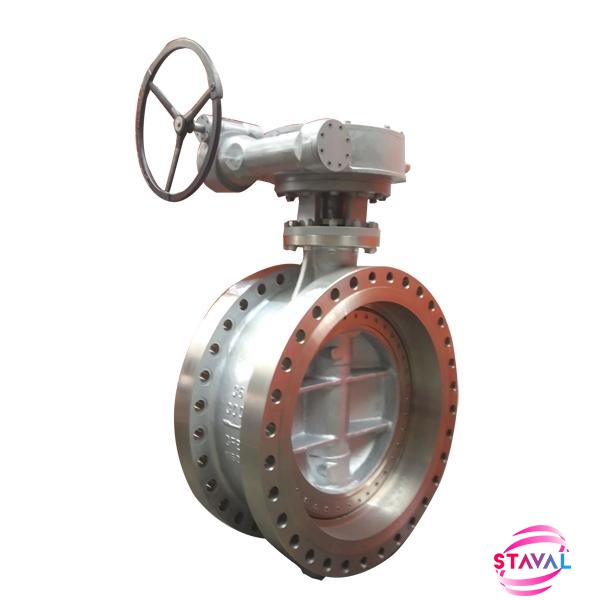

API609 Triple Eccentric Butterfly Valve
Manufacture STAVAL Factory Offers.
Product origin:
ChinaSize Range:
2Inch ~ 60Inch (DN50 ~ DN1600)Pressure Range:
150LB ~ 2500LB (PN16 ~ PN420)Material Range:
CS, SS, Alloy Steel, Bronze, Specialize MaterialConstruction:
Triple Eccentric,Hihg PerformanceEnd Connection:
BW, Flange, Lug, WaferSeat:
Soft Seat, Metal SeatWorking Temp.:
-196°C to +600°CProduct Details
|
Type |
Butterfly Valve |
|
Size |
36Inch |
|
Pressure |
300LB |
|
Construction |
Triple Eccentric, Two way seal, Zero Leakage |
|
Connection |
RF End |
|
Body Material |
A351 CF8C |
|
Disc Material |
A351 CF8C+STL |
|
Stem Material |
A182 F347 |
|
Seat Material |
A351 CF8C+STL |
|
Bolt/Nut |
B8M/8M |
|
Design Standard |
API 609 |
|
Face to Face Dimension |
ASME B16.5 |
|
End Connection |
ASME B16.10 |
|
Inspection & Test Std. |
API598 |
|
Temperature Range |
-29℃~+538℃ |
|
Medium |
Oil, Water, Gas |
XIAMEN STAVAL VALVE TECHNOLOGY CO., LTD
